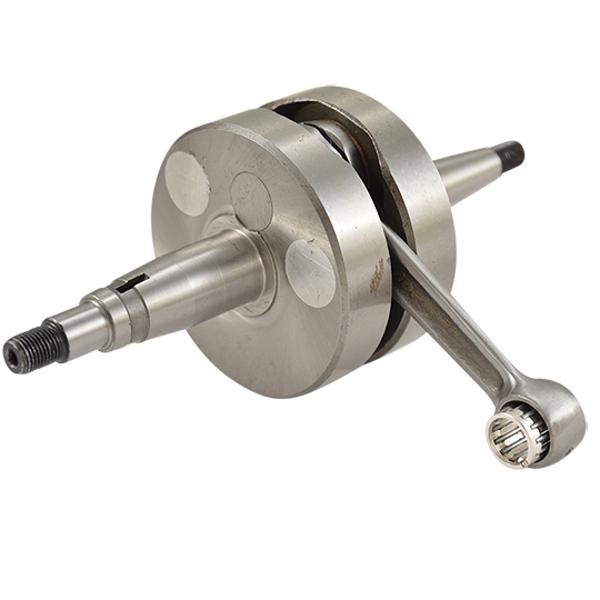

CRANKSHAFT MOTO DOPPLER ORIGIN FOR DERBI SENDA ->2006 EURO2
Ref. : 486139
| Connecting rod mass | Pleine |
| Right silk diameter in mm | 20 |
| Left silk diameter in mm | 20 |
| Forged connecting rod | Oui |
| Connecting rod length in mm | 90 |
| Needle cage supplied | Non |
| Piston pin diameter in mm | 12 |
| left bearing | 7961;7960;489848;7962 |
| Spare part right bearing | 7961;7960;489848;7962 |
| Spare part bearing kit | 478942 |
The original crankcase is in solid mass technology with an aluminium balance plug (which reduces dead volume in the lower engine while ensuring maximum balance and good inertia).
- BULTACO LOBITO (50 cc) Until 2005
- CAGIVA MITO (50 cc) Until 2005
- DERBI SENDA R DRD (50 cc) Until 2005
- DERBI SENDA R X-RACE (50 cc) Until 2005
- DERBI SENDA R X-TREME (50 cc) Until 2005
- DERBI SENDA SM DRD (50 cc) Until 2005
- DERBI SENDA SM X-RACE (50 cc) Until 2005
- DERBI SENDA SM X-TREME (50 cc) From 2002 to 2005
- DERBI SENDA SM X-TREME (50 cc) Until 2005
- GILERA RCR (50 cc) Until 2005
- GILERA SMT (50 cc) Until 2005
Gross weight :
1,678 kg
1,678 kg
Length :
0.275 m Width :
0.142 m Height :
0.100 m
0.275 m Width :
0.142 m Height :
0.100 m
Volume :
0.00391 m³
0.00391 m³
