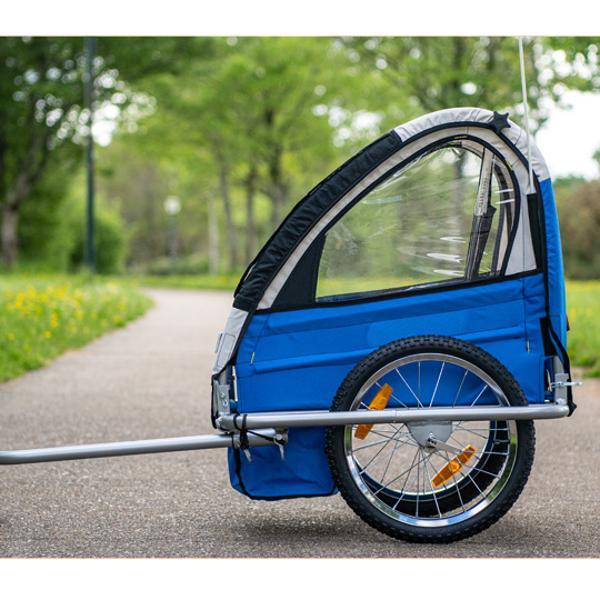

TRAILER -CHILD- OPTIMIZ 1 -CHILD- -HUB MOUNT -WHEEL 16 / L60xW40xH56
| Trailer type | Enfant |
| Towbar attachment | Axe de roue |
| Hitch included | Oui |
| Foldable | Non |
| Assembly | Montage et démontage rapide sans outils |
| Dimensions in mm | 42x38xx54 (intérieures) |
| Dimensions (LxWxH) in cm | 60x40x56 |
| Payload in Kg | 40 |
| Weight in Kg | 11 |
| Wheel size | 16 |
| Wheel material | Acier |
| Trailor wheel skewer | Quick release (QR) |
| Chassis material | Acier |
| Child location | 1 |
| Child minimum age | 18 mois |
| Push buggy convertible | No |
| Trailer protection elements | Bâche, Capote polyester ajustable, Filet d'aération anti-moustique, Fond renforcé, Toile renforcée |
| Trailor colour | Bleu/blanc |
| Fixing protective elements | Strap |
| Tarpaulin front opening | Porte avant avec fenêtre transparente pvc relevable. |
| Tarpaulin back opening | Espace pour les bagages au dos de l'assise séparé par un filet |
| Tarpaulin side opening | 2 fenêtres latérales transparentes. |
| Interior compartment | 3 |
| Security element | Ceintures de sécurité. barres de protection autour des roues. siège rembourré |
| Signaling elements | Drapeau de signalisation. réflecteurs et bandes réfléchissantes |
| Spare part - Low tarpaulin | 520583 |
| Spare part - High tarpaulin | 520582 |
| Spare part - Wheel 16 | 520585 |
Allows you to transport a child seated facing forward
- Keep your child safe thanks to the belts with secure fastening
- Removable drawbar with rear wheel mounting (QR)
- Adjustable polyester hood with a transparent lift-up waterproof pvc window lined with an anti-mosquito ventilation net
- Reinforced canvas
- 2 transparent side windows
- Padded seat
- Wheels: 2 wheels 16x1.75
- Steel rims, hubs and spokes
- WD studded tires (ETRTO: 47-305)
- Steel frame
- Additional space for luggage on the back of the seat
- 2 inside pockets
- Reflectors at the front and rear of the trailer as well as in the wheels
- Orange signal flag
- Quick assembly and disassembly without tools
- Dimensions: L 60cm x W 40cm x H 56cm
- Interior dimensions (seat): L 42cm x W 38cm x H 54cm
- Rear wheel attachment provided
- Max load: 40 kg
- Weight: 11 kg
Related references:
child trailer cover lower part (ref. 520583)
child trailer tarpaulin upper part (ref. 520582)
16 trailer wheel (ref.520585)
Recommended for a child between 18 months and 7 years old (29Kg max).
** When receiving the product, remember to check all the tightenings of the trailer (spoke tension, wheel tightenings, components and accessories).
For hub nuts, screw in contact without tightening.
The tires must be inflated to a pressure between 2.5 and 3.5 bars, check them before each use.
12,252 kg
0.713 m Width :
0.303 m Height :
0.637 m
0.13762 m³
