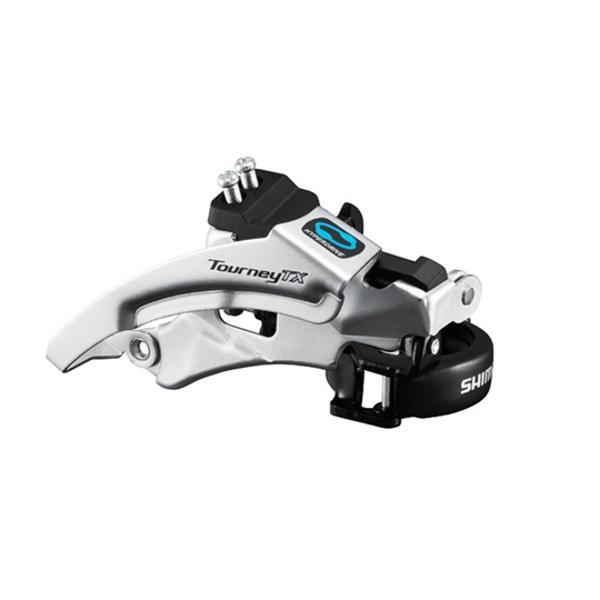

DERAILLEUR FRONT -MTB- Ø34.9/31.8/28.6 SHIMANO TX800 LOW COLLAR/UP AND DOWN PULLING - 7/8 SPEED
Ref. : 533422
| Model | FD-TX800-TS6 |
| Reference supplier | EFDTX800TSX6 |
| Practical | VTT |
| Derailleur mount | Collier bas |
| Ø Collar in mm | 28.6 / 31.8 / 34.9 |
| Draw | Bas, Haut |
| Number of compatible speeds | 3x8, 3x7 |
| Détails | |
| Ligne de chaîne | 47,5 mm, 50 mm |
| Chain compatibility | HG 8/7/6 vitesses |
| Minimum small chainring teeth | 22 dents |
| Maximum large chainring teeth | 48 dents |
| Maximum front tooth difference | 20 dents |
Model: FD-TX800-TS6
Supplier Ref: EFDTX800TSX6
Mounting: Low clamp
Clamp Ø in mm: 34.9 mm (28.6 & 31.8 mm with adapters)
Pull: double pull top and bottom
Number of speeds: 3 x 6/7/8 speeds
Maximum chainring teeth: 48 teeth
Maximum front tooth difference: 20 teeth
Chain line: 47.5/50
Base / seat tube angle: 66 to 69°
Gross weight :
0,264 kg
0,264 kg
Length :
0.144 m Width :
0.098 m Height :
0.086 m
0.144 m Width :
0.098 m Height :
0.086 m
Volume :
0.00121 m³
0.00121 m³
