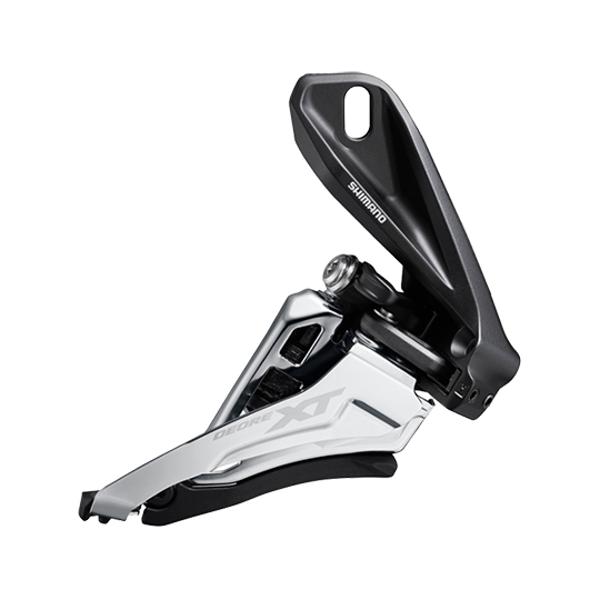

DERAILLEUR MTB FRONT SHIMANO XT M8100 DIRECT MOUNT
Ref. : 506071
![]()
4550170443665
| Model | FD-M8100-D |
| Practical | VTT |
| Derailleur mount | Direct mount |
| Fixing details | fixation à 1 vis réglage sur 9 mm |
| Draw | Avant (side pull) |
| Number of compatible speeds | 2x12 |
| Weight in grams | 125 |
| Technology | Side Swing |
| Détails | |
| Ligne de chaîne | 48,8 mm, 51,8 mm |
| Chain compatibility | HG 12 vitesses |
| Minimum small chainring teeth | 26 dents |
| Maximum large chainring teeth | 38 dents |
| Maximum front tooth difference | 10 dents |
DEORE XT M8000 Series front derailleurs provide smooth, precise operation, secure shifting for aggressive rides.
They offer an extra wide gear range with a 36-26t double front combination.
Increased traction range and no chain friction for long travel bikes
Features :
Model: FD-M8100-D
Supplier ref: IFDM8100D6
Mounting: Type D (direct mounting)
Pull: from the front (Side Pull)
Number of speeds: 2 x 12v
Minimum chainring teeth: 26T
Maximum chainring teeth: 38T
Maximum front tooth difference: 10T
Chainline: 48.8 (142mm O.L.D.), 51.8 (148mm O.L.D.)
Chain compatibility: HG 12 speed
Weight: 135g
Technology :
Side Swing
Specificity: More space for the passage of tires
Compatible with 2.3 inch tires on wider rims
Gross weight :
0,302 kg
0,302 kg
Length :
0.155 m Width :
0.154 m Height :
0.106 m
0.155 m Width :
0.154 m Height :
0.106 m
Volume :
0.00253 m³
0.00253 m³
