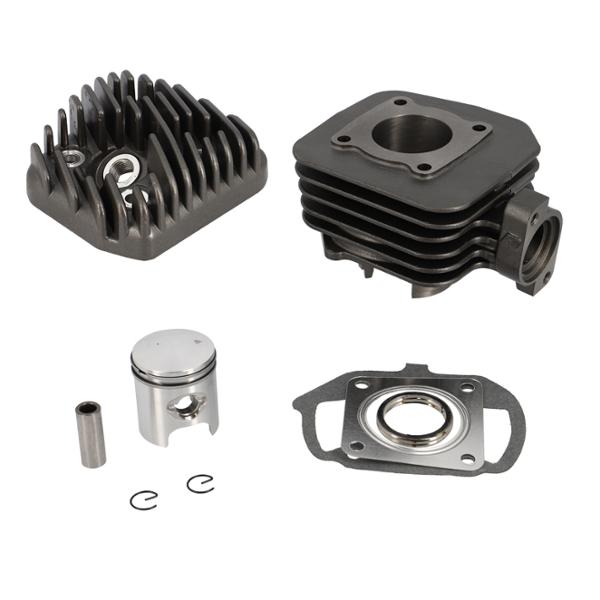

CYLINDER KIT SCOOTER -IRON- DOPPLER ORIGIN FOR LUDIX/VIVACITY 3/SPEEDFIGHT 3 AIR/KISBEE
Ref. : 536355
3663829369924
| High engine subfamily | Cylindre/Piston/Culasse |
| Cooling | Air |
| Studed cylinder head | Non |
| Cylinder head architecture | Cap |
| Cylinder material | Fonte |
| Number of admission transfers | 5 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Cylinder head material | Aluminium |
| Piston material | Aluminium moulé |
| Piston diameter | 39.90 |
| Piston pin diameter in mm | 12 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte chromée |
| Piston ring section | Oblique |
| Segment lug | Recouvert |
| Gaskets supplied | Oui |
| Spare part: cylinder head | 505678 |
| Spare part: cylinder head gaskets | 505674 |
| Spare part: piston | 509900 |
- PEUGEOT CITYSTAR (50 cc) From 2014 to 2017
- PEUGEOT DJANGO 2T (50 cc) From 2014 to 2017
- PEUGEOT KISBEE 2T (50 cc) From 2013 to 2017
- PEUGEOT LUDIX TREND 10" (50 cc) From 2004 to 2007
- PEUGEOT SPEEDFIGHT 3 2T AC (50 cc) Until 2014
- PEUGEOT SPEEDFIGHT 4 2T AC (50 cc) From 2015 to 2018
- PEUGEOT STREETZONE 10" (50 cc) From 2013 to 2017
- PEUGEOT STREETZONE 12" (50 cc) From 2013 to 2017
- PEUGEOT VIVACITY 3 2T (50 cc) From 2008 to 2020
Length :
0.213 m Width :
0.168 m Height :
0.157 m
0.213 m Width :
0.168 m Height :
0.157 m
Gross weight :
2,790 kg
2,790 kg
Volume :
0.00562 m³
0.00562 m³
