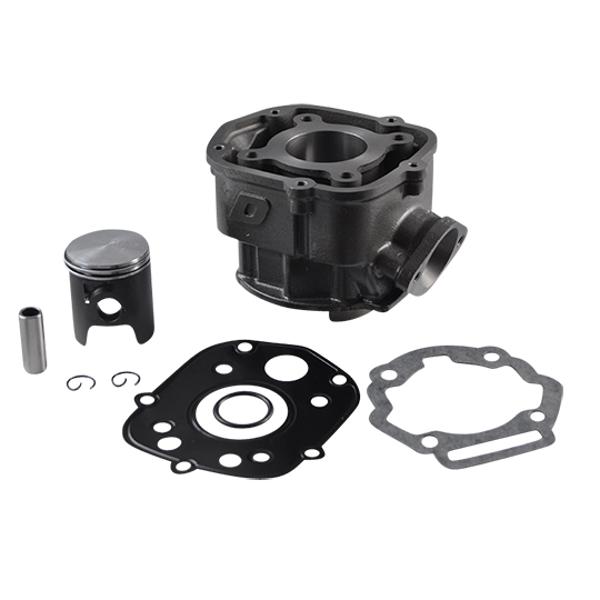

CYLINDER MOTO 50cc IRON DOPPLER ORIGIN FOR DERBI SENDA/GPR 2006-> EURO3/EURO4
Ref. : 496866
| High engine subfamily | Cylindre/Piston |
| Cooling | Liquide |
| Cylinder material | Fonte |
| Number of admission transfers | 5 |
| Exhaust type | Booster |
| Exhaust Mount Type | A bride |
| Piston material | Aluminium moulé |
| Piston diameter | 39.84 |
| Piston pin diameter in mm | 12 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte |
| Piston ring section | Rectangulaire |
| Segment lug | Décalé supérieur |
| Gaskets supplied | Oui |
| Spare part: cylinder head gaskets | 491306 |
| Spare part: piston | 509898 |
| Spare part: piston ring | 491313 |
| Spare part: clips | 505041 |
Doppler benefits from a long experience acquired in competition. Dopplers know-how allows us to obtain parts of excellent quality. Developed in France, the Origin cast iron cylinder can be fitted to all vehicles equipped with a Minarelli AM6 engine. Doppler has developed this cylinder for daily use, it is approved for road use (49/9). It features a 3-light booster exhaust and a modified transfer (modified scavenging for reduced dead volume). Dopplers knowledge has made it possible to increase the engines torque without altering its power at high rpm. The tuning is simplified and the assembly is faster.
- APRILIA RS (50 cc) From 2006
- APRILIA RS4 (50 cc) From 2006
- APRILIA RS4 (50 cc) From 2011 to 2017
- APRILIA RX (50 cc) From 2006
- APRILIA SX (50 cc) From 2006
- DERBI GPR (50 cc) From 2006
- DERBI SENDA R DRD (50 cc) From 2006
- DERBI SENDA R DRD PRO (50 cc) From 2006
- DERBI SENDA R DRD RACING (50 cc) From 2006
- DERBI SENDA R X-RACE (50 cc) From 2006
- DERBI SENDA R X-TREME (50 cc) From 2006
- DERBI SENDA SM DRD (50 cc) From 2006
- DERBI SENDA SM DRD EVO (50 cc) From 2006
- DERBI SENDA SM DRD PRO (50 cc) From 2006
- DERBI SENDA SM DRD PRO (50 cc) From 2006 to 2011
- DERBI SENDA SM DRD RACING (50 cc) From 2006
- DERBI SENDA SM X-RACE (50 cc) From 2006
- DERBI SENDA SM X-TREME (50 cc) From 2006 to 2012
- DERBI SENDA SM X-TREME (50 cc) From 2006
- DERBI SENDA SM X-TREME (50 cc) From 2018
- GILERA RCR (50 cc) From 2006
- GILERA RCR (50 cc) From 2011 to 2017
- GILERA SMT (50 cc) From 2006
- GILERA SMT (50 cc) From 2011 to 2017
Gross weight :
1,886 kg
1,886 kg
Length :
0.170 m Width :
0.153 m Height :
0.145 m
0.170 m Width :
0.153 m Height :
0.145 m
Volume :
0.00377 m³
0.00377 m³
