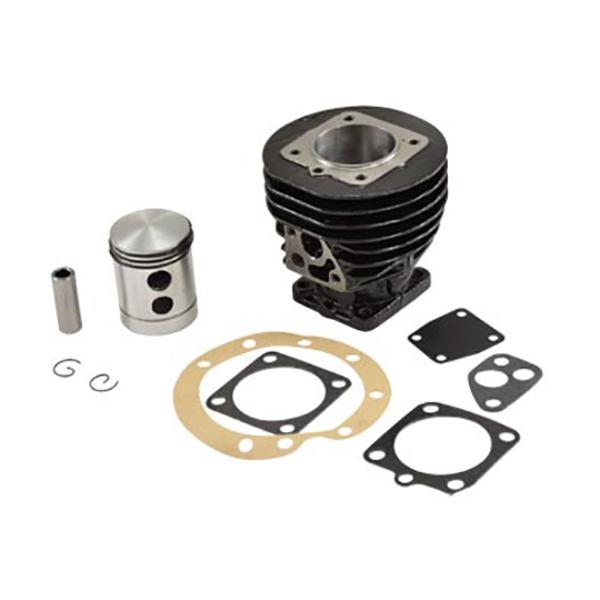

CYLINDER MOPED IRON FOR SOLEX (WITH PISTON + PUMP MEMBRANE + SET 4 GASKETS)
Ref. : 491033
| High engine subfamily | Cylindre/Piston |
| Cooling | Air |
| Cylinder material | Fonte |
| Number of admission transfers | 1 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Piston material | Aluminium moulé |
| Piston diameter | 39.43 |
| Piston pin diameter in mm | 12 |
| Piston cap | Domed |
| Number of piston rings | 3 |
| Piston ring material | Fonte |
| Piston ring section | Rectangulaire |
| Segment lug | Sans |
| Gaskets supplied | Oui |
| Spare part: cylinder head gasket | 4126 |
| Spare part: cylinder seal | 4129 |
| Spare part: exhaust gasket | 329872 |
| Spare part: piston | 467742 |
| Spare part: piston ring | 4113 |
- SOLEX 3800 (50 cc) From 1966 to 1988
Gross weight :
1,310 kg
1,310 kg
Length :
0.360 m Width :
0.227 m Height :
0.106 m
0.360 m Width :
0.227 m Height :
0.106 m
Volume :
0.00866 m³
0.00866 m³
