CYLINDER KIT SCOOTER FONTE MALOSSI FOR BOOSTER/BW'S/STUNT/SLIDER/ROCKET/NEXT/NG
| High engine subfamily | Cylindre/Piston/Culasse |
| Cooling | Air |
| Studed cylinder head | Non |
| Cylinder head architecture | Hemispherical |
| Cylinder material | Fonte |
| Number of admission transfers | 6 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Cylinder head material | Aluminium |
| Piston material | Aluminium moulé |
| Piston diameter | 40.00 |
| Piston pin diameter in mm | 10 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte chromée |
| Piston ring section | Rectangulaire |
| Segment lug | Recouvert |
| Gaskets supplied | Oui |
| Spare part: cylinder head gaskets | 2360 |
| Spare part: piston | 212959 |
| Spare part: piston ring | 2325 |
Have fun without complications
6 transfers - 2-segment piston
Malossi cast iron thermal groups, the simplest phase of modifying the engine of your moped, the perfect solution to continue using a series or approved system.
These thermal groups stand out for the longevity of the cast iron combined with the almost maniacal quality standards of Malossi, one of the rare companies that demands the maximum even from this class of thermal groups.
It is with this in mind that we impose extremely strict selections for the coupling of the cylinder and the piston, rigorously held by the flange with a maximum tolerance of 20 microns.
Power range Ø 40: 6-7 hp @9,000 rpm

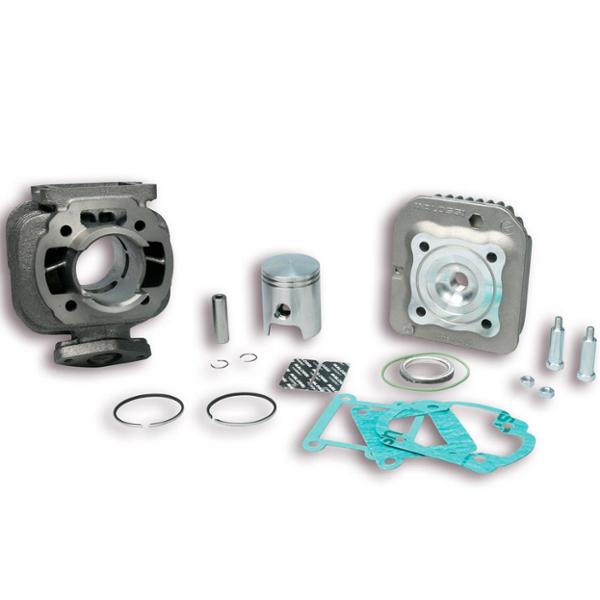

Composition of the thermal group:
- 1 Cylinder
- 1 complete piston
- 1 Cylinder Head
- 1 Complete engine top gasket kit
- APRILIA AMICO (50 cc)
- MBK BOOSTER (50 cc) From 2004 to 2019
- MBK BOOSTER ONE (50 cc) From 2013 to 2017
- MBK ROCKET (50 cc) From 2004 to 2009
- MBK STUNT (50 cc)
- MBK STUNT NAKED (50 cc) From 2005 to 2012
- YAMAHA BW'S (50 cc) From 2004 to 2019
- YAMAHA BW'S EASY (50 cc) From 2013 to 2017
- YAMAHA BW'S NAKED (50 cc)
- YAMAHA BW'S NEXT GENERATION (50 cc)
- YAMAHA BW'S ORIGINAL (50 cc)
- YAMAHA BW'S SPY (50 cc)
- YAMAHA NEXT (50 cc) From 2004 to 2009
- YAMAHA SLIDER (50 cc)
- YAMAHA SLIDER NAKED (50 cc) From 2005 to 2012
2,350 kg
