CYLINDER KIT SCOOTER FONTE MALOSSI FOR TREKKER/SPEEDFIGHT AIR/VIVACITY/BUXY/ELYSTAR/TKR
| High engine subfamily | Cylindre/Piston/Culasse |
| Cooling | Air |
| Studed cylinder head | Non |
| Cylinder head architecture | Hemispherical |
| Cylinder material | Fonte |
| Number of admission transfers | 6 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Cylinder head material | Aluminium |
| Piston material | Aluminium moulé |
| Piston diameter | 40.00 |
| Piston pin diameter in mm | 12 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte chromée |
| Piston ring section | Rectangulaire |
| Segment lug | Recouvert |
| Gaskets supplied | Oui |
| Spare part: cylinder head gaskets | 214693 |
| Spare part: piston | 461302 |
| Spare part: piston ring | 2325 |
Have fun without complications
6 transfers - 2-segment piston
Malossi cast iron thermal groups, the simplest phase of modifying the engine of your moped, the perfect solution to continue using a series or approved system.
These thermal groups stand out for the longevity of the cast iron combined with the almost maniacal quality standards of Malossi, one of the rare companies that demands the maximum even from this class of thermal groups.
It is with this in mind that we impose extremely strict selections for the coupling of the cylinder and the piston, rigorously held by the flange with a maximum tolerance of 20 microns.
Power range Ø 40: 6-7 hp @9,000 rpm

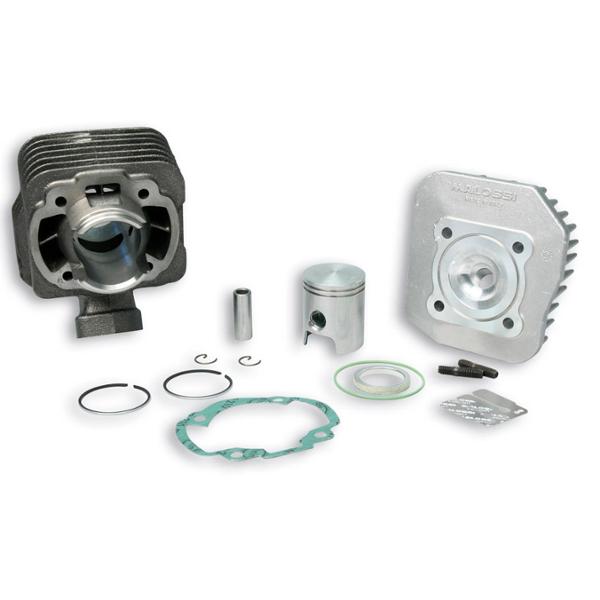

Composition of the thermal group:
- 1 Cylinder
- 1 complete piston
- 1 Cylinder Head
- 1 Complete engine top gasket kit
- PEUGEOT BUXY (50 cc)
- PEUGEOT ELYSEO (50 cc)
- PEUGEOT ELYSTAR (50 cc)
- PEUGEOT LOOXOR (50 cc)
- PEUGEOT METROPOLIS (50 cc)
- PEUGEOT SPEEDAKE (50 cc)
- PEUGEOT SPEEDFIGHT 2 2T AC (50 cc)
- PEUGEOT SQUAB (50 cc)
- PEUGEOT SV50 GEO (50 cc)
- PEUGEOT TKR (50 cc)
- PEUGEOT TREKKER (50 cc)
- PEUGEOT ZENITH (50 cc)
2,806 kg
0.485 m Width :
0.223 m Height :
0.147 m
0.01590 m³
