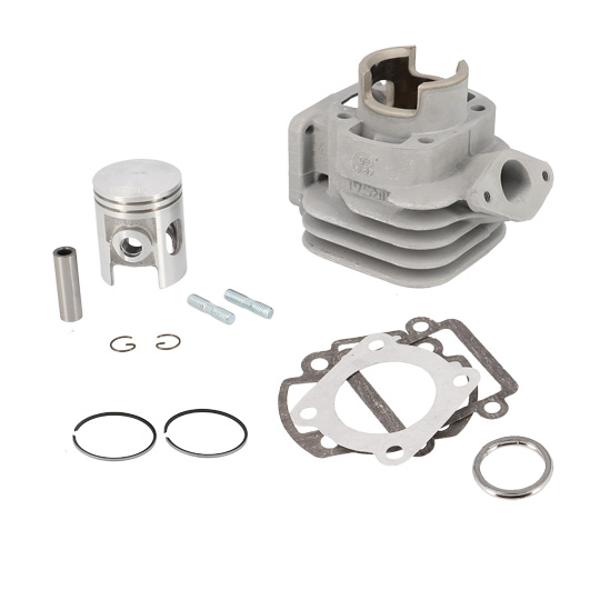

CYLINDER SCOOTER ALU AIRSAL FOR BOOSTER/BW'S/STUNT/SLIDER/ROCKET (DIA 40)
Ref. : 518885
| High engine subfamily | Cylindre/Piston |
| Cooling | Air |
| Cylinder material | Aluminium nikasil |
| Number of admission transfers | 5 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Piston material | Aluminium moulé |
| Piston diameter | 39.95 |
| Piston pin diameter in mm | 10 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte |
| Piston ring section | Rectangulaire |
| Segment lug | Recouvert |
| Gaskets supplied | Oui |
| Spare part: cylinder head gaskets | 518950 |
| Spare part: piston | 169693 |
| Spare part: piston ring | 169708 |
- MBK BOOSTER (50 cc) From 1989 to 2019
- MBK BOOSTER ONE (50 cc) From 2013 to 2017
- MBK ROCKET (50 cc) From 2004 to 2009
- MBK STUNT NAKED (50 cc) From 2005 to 2012
- YAMAHA BW'S (50 cc) From 2004 to 2019
- YAMAHA BW'S EASY (50 cc) From 2013 to 2017
- YAMAHA NEXT (50 cc) From 2004 to 2009
- YAMAHA SLIDER NAKED (50 cc) From 2005 to 2012
Gross weight :
0,822 kg
0,822 kg
Length :
0.163 m Width :
0.116 m Height :
0.122 m
0.163 m Width :
0.116 m Height :
0.122 m
Volume :
0.00231 m³
0.00231 m³
