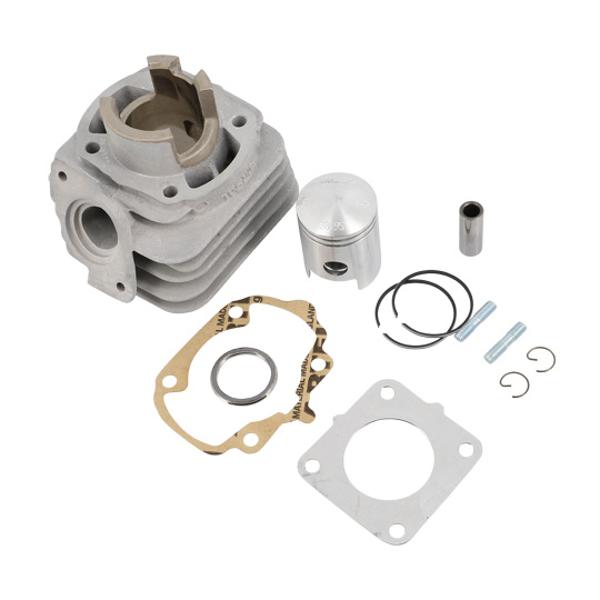

CYLINDER SCOOTER ALU AIRSAL FOR HONDA X8R/SFX/SH/BALI (DIA 39)
Ref. : 518886
| High engine subfamily | Cylindre/Piston |
| Cooling | Air |
| Cylinder material | Aluminium nikasil |
| Number of admission transfers | 5 |
| Exhaust type | Ovale |
| Exhaust Mount Type | A bride |
| Piston material | Aluminium moulé |
| Piston diameter | 38.95 |
| Piston pin diameter in mm | 12 |
| Piston cap | Domed |
| Number of piston rings | 2 |
| Piston ring material | Fonte |
| Piston ring section | Rectangulaire |
| Segment lug | Recouvert |
| Gaskets supplied | Oui |
| Spare part: piston | 518992 |
| Spare part: piston ring | 519044 |
- HONDA BITE (50 cc)
- HONDA SFX (50 cc)
- HONDA SH (50 cc)
- HONDA X8R-S (50 cc)
- HONDA X8R-X (50 cc)
Gross weight :
0,936 kg
0,936 kg
Length :
0.160 m Width :
0.116 m Height :
0.121 m
0.160 m Width :
0.116 m Height :
0.121 m
Volume :
0.00225 m³
0.00225 m³
