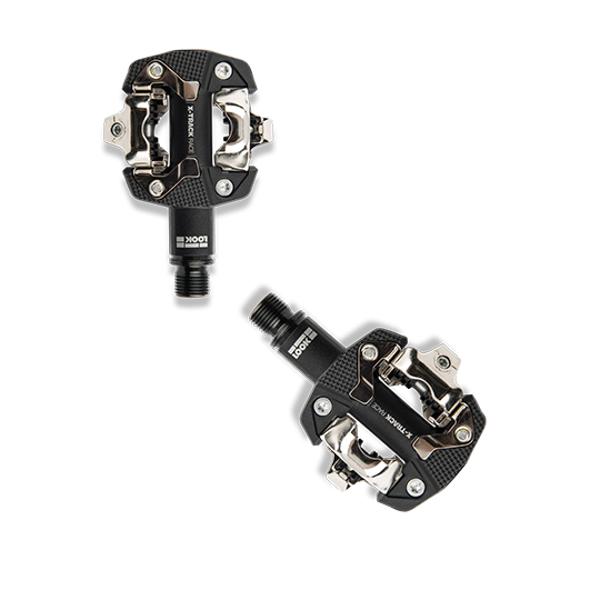

PEDAL MTB AUTO LOOK X TRACK RACE BLACK (PR)
Ref. : 515065
| Général | |
| Model | X TRACK RACE |
| Reference supplier | 00018222 |
| Type de pédales | Automatique |
| Matter | Composite |
| Axes (Dimension / matière) | 9/16, chromoly |
| Bearing type | Annulaire Acier |
| Informations Cales | |
| Type de cales | 2 Trous, SPD |
| Liberté angulaire | 6° |
| Réglage tension | 6-14 |
| Informations Techniques | |
| Dimensions in mm | 60 x 70 |
| Surface Pedale en mm2 | 515 |
| Q factor | 53 |
| Hauteur d'appui + cales | 16.8 (10.7 + 6.1) |
| Main colour | Black |
| Technologie | X-Track, SPD |
| Weight in grams | 364 |
| Specificities | cale standard incluse |
Technology : X-track
Wedges: Standard wedge included (easy wedge available separately) ref 515097
Standard wedge : SPD compatible
Tension : 6 to 14
Body : Composite
Axle : Chromoly
Supporting surface: 515 mm²
Support width: 60 mm
Support height + wedges: 16.8 mm (10.7 + 6.1 mm)
Qfactor: 53 mm
Weight (pedal): 182 g
Weight pair + wedges: 415 g
Weight pair of wedges: 50 g
Angular play: 6°
Release angle: 13
Gross weight :
0,494 kg
0,494 kg
Length :
0.208 m Width :
0.123 m Height :
0.053 m
0.208 m Width :
0.123 m Height :
0.053 m
Volume :
0.00136 m³
0.00136 m³
